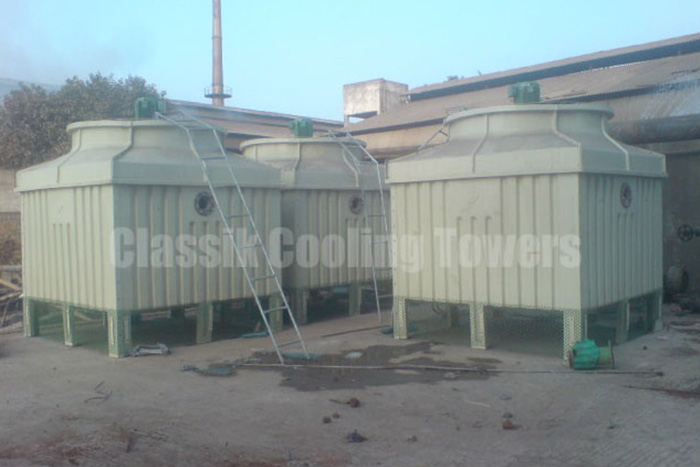

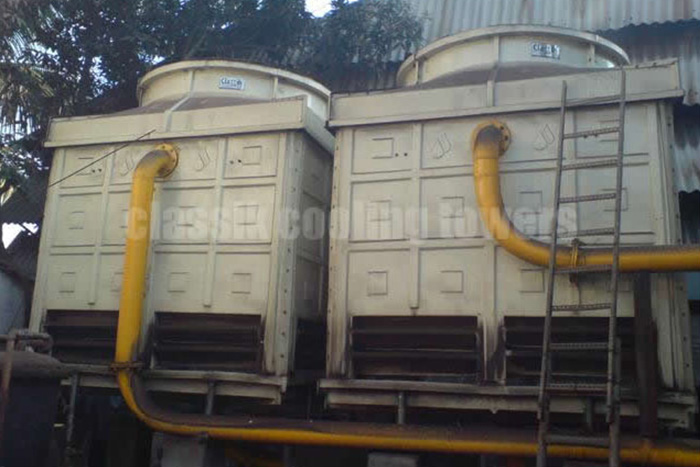

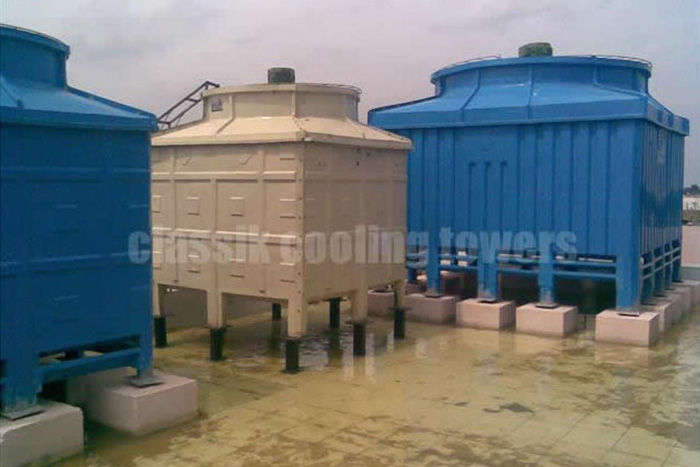

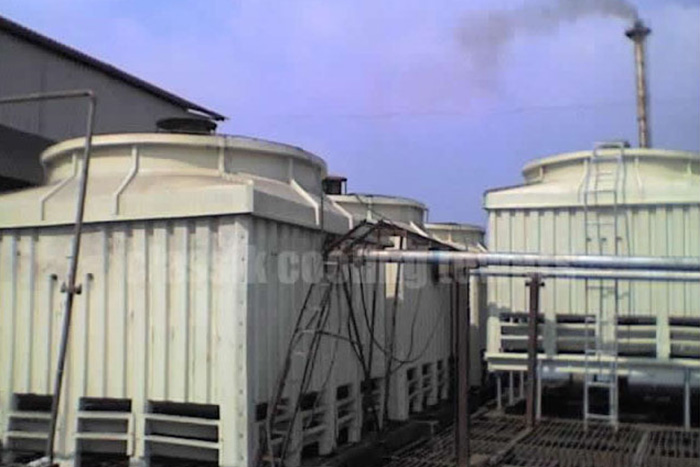

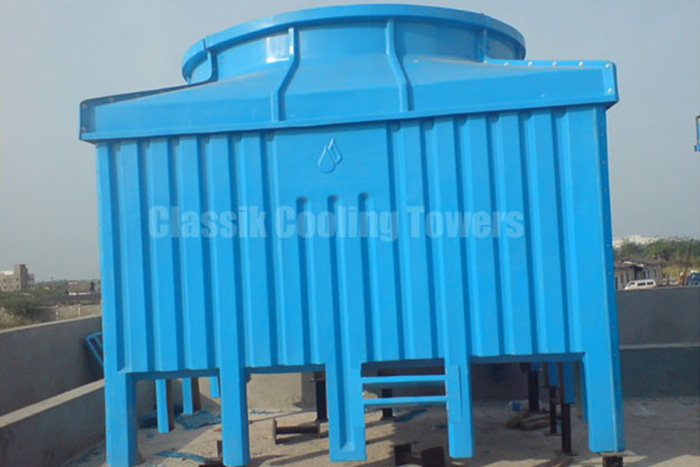

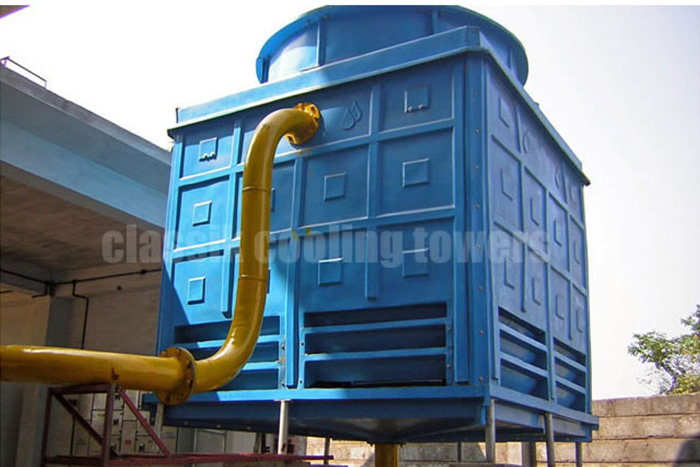

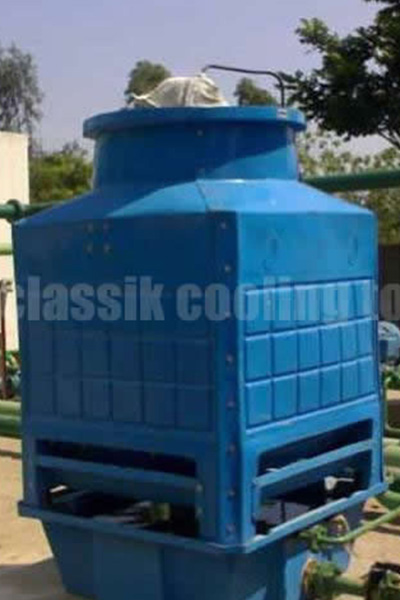

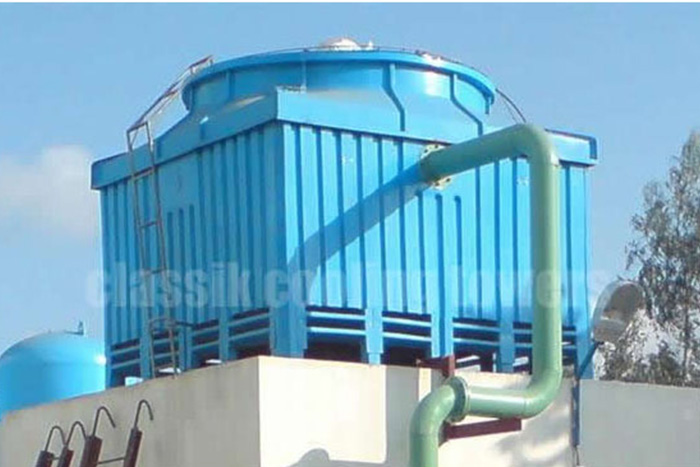

Square Shape Cooling Towers

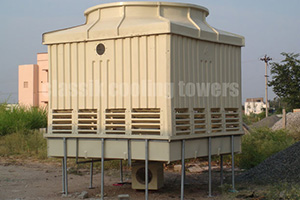

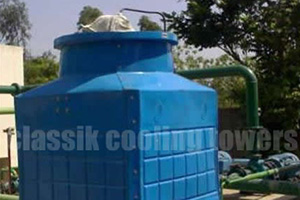

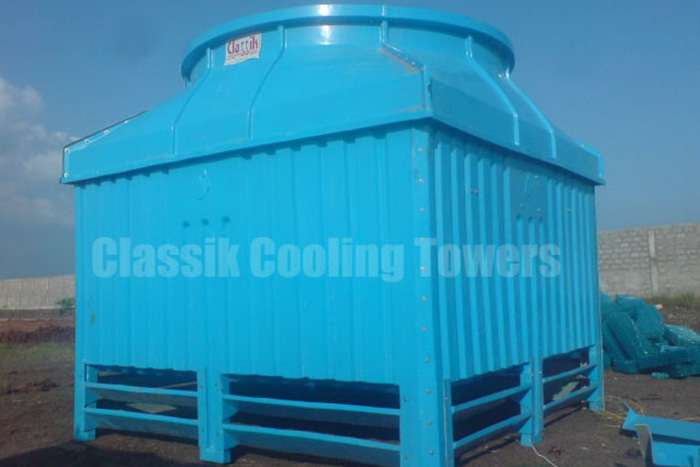

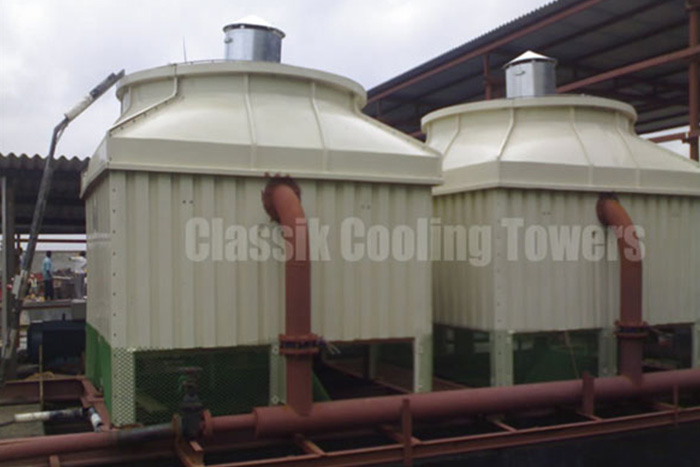

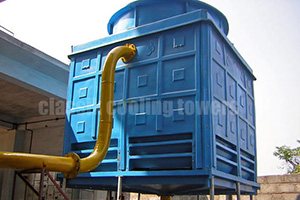

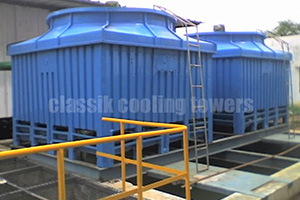

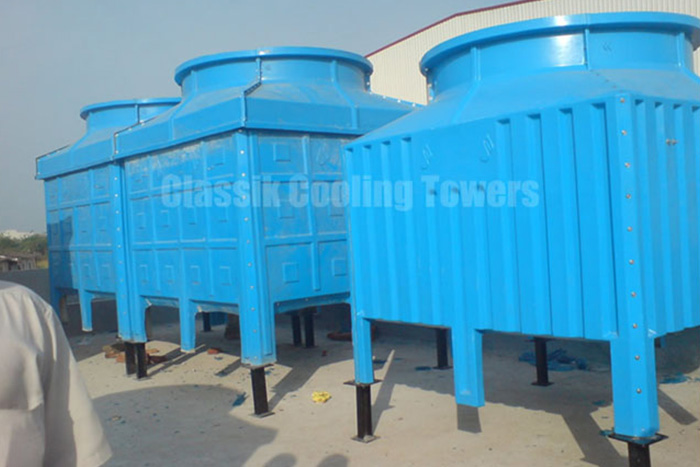

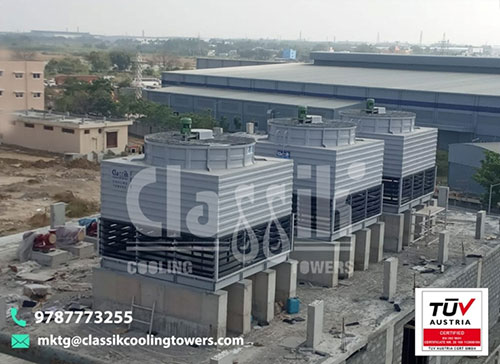

ICT-square shaped towers cool the re-cycled water. The towers blend easily with architectural surroundings, giving a unique aesthetic appearance.

Designed to cool industrial re-cycled process water from temperature of 50 degrees to temperature of 4 plus the prevailing Wet Bulb temperature of the region. The design incorporate the static spray nozzle distribution to atomize water in to a mist state and ensure uniformity in water dispersion and are easy to maintain even during the tower operations.

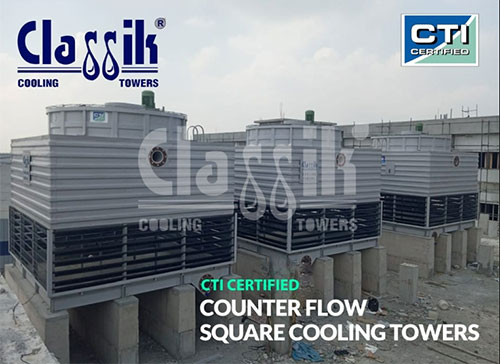

VALIDATION NUMBER: C119A-21R00

The hot water from the application is dispersed uniformly over the wet deck fill by means of static spray non clog nozzles. Simultaneously, air is induced through the fill media thus taking away the latent heat from the water passing through the fill media. Portion of water evaporated, removes the heat from the remaining water. The warm moist air is drawn through the fan deck is discharged to the atmosphere. Cold water, collected at the collection sump, is re-circulated to the heat source.

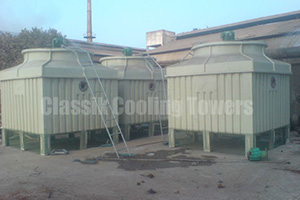

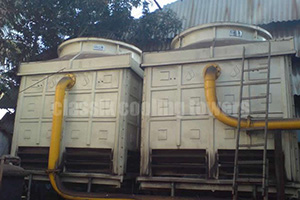

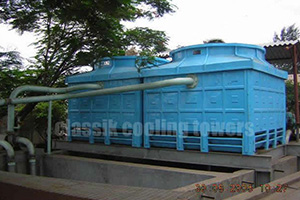

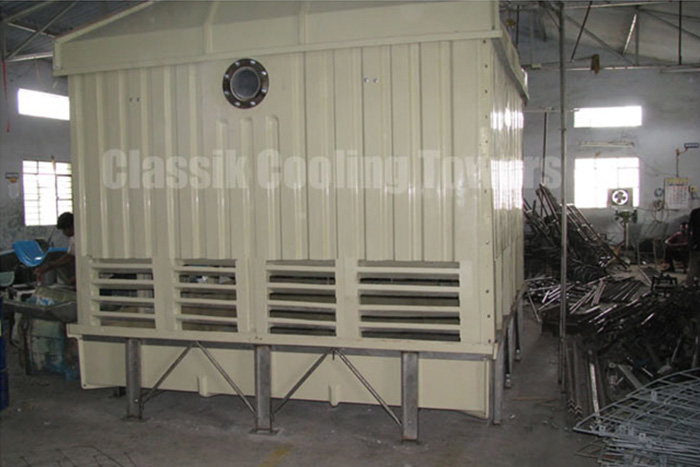

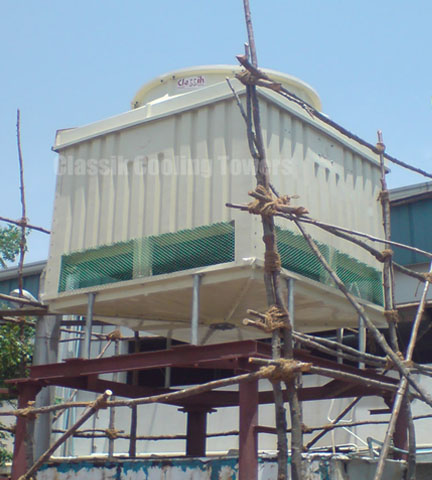

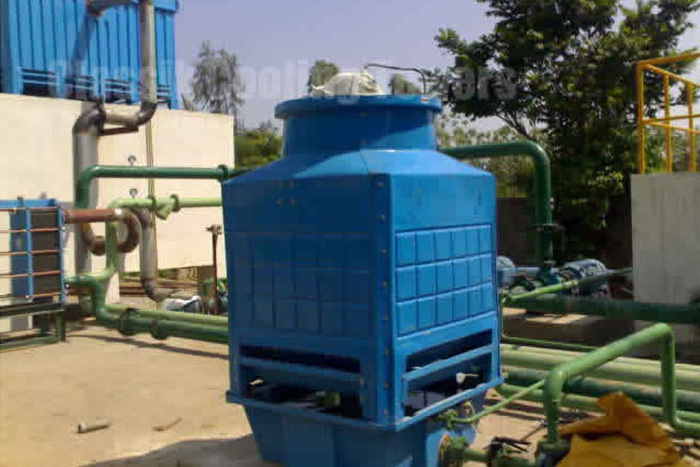

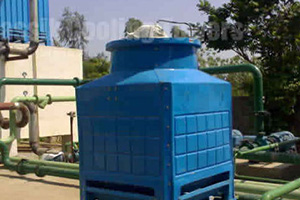

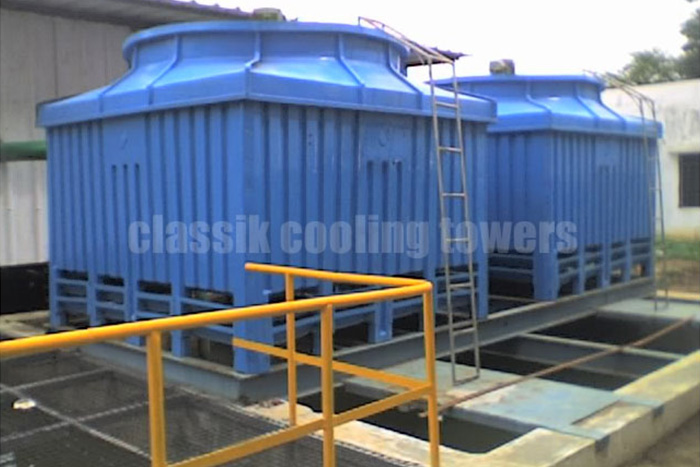

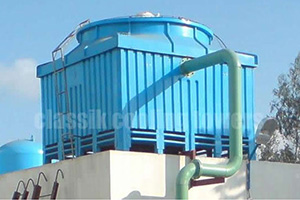

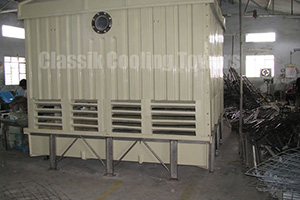

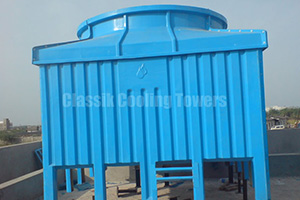

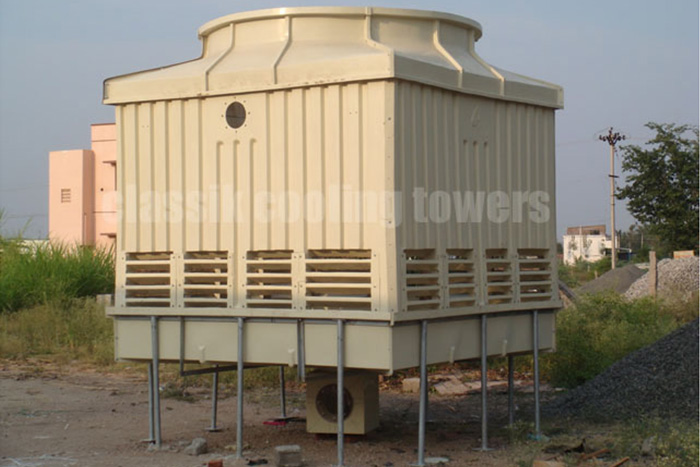

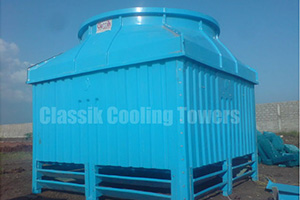

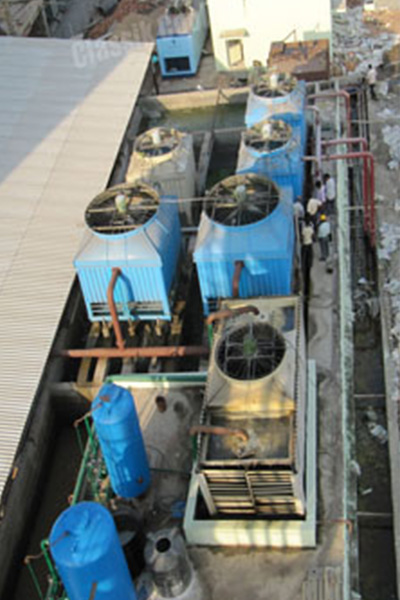

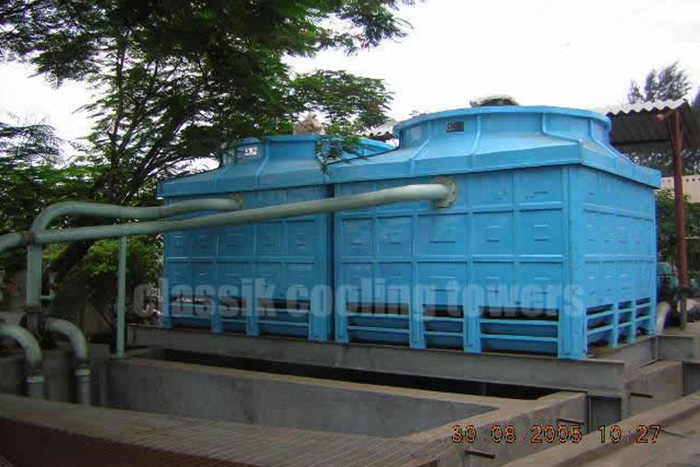

Photo Gallery

Principal Function

The tower designs incorporates a static distribution setup, located above the fill media. Hot water form the application is circulated to the distribution header from which they are dispersed over the fill media by no. of non-clog static nozzles, fitted to the branch pipe of the main header. Water when forced ( 1 to 1.5 kg/scm) through the distribution setups is atomized and sprayed over the fill media. The fan that is coupled directly to the motor draws air across the fill media vertically and in the process takes away the heat from the water. Cold water is collected at the collection sump having the outlet connection through which cold water is circulated to the application. The spray losses are minimized by using adequate drift eliminators. The distinguishing features of our product are compact design Honey comb type PVC fills, with varying flute sizes, to provide maximum contact surface area and heat transfer surface per unit volume.

Salient Features

All structural in HDG Steel
PVC Fills with varying flute sizes of 12 mm, 14 mm, 19 mm, 22 mm
TEFC, IP-55 Protected ‘F’ Class Insulated motor with extended shaft
Adjustable pitch axial flow, dynamically balanced aluminium fans
Casings of FRP (Fibre Reinforced Plastics) for durability and strength
All joints fastened with SS fasteners
Uniformity in water dispersion through non – clog nozzles
Capacities 10TR to 1500TR , in single cell
Water flow 5 m3/h to 1000 m3/h, in single cell
Delta T (Temperature drop) 4°C to 20°C, in single cell
The design incorporate the static spray nozzle distribution to atomize water in to a mist state and ensure uniformity in water dispersion and are easy to maintain even during the tower operations.
Our cooling Tower are designed for multi-cell construction, thus offering better flexibility in tower selection and operation.
The tower is reassembled in the factory, knocked down into some unit, transported to the job site, and reassembled into the final shape. The quality is thus stable. The transport and set-up is easy and quickly.
